Track Zone Visits¶

TrackZoneVisits records the ordered sequence of zones that each tracked detection enters. Unlike a zone filter, it preserves that history as zone_visits on the detection, so downstream stages can reason about a path such as entrance → aisle → checkout.

This tutorial applies the capability to cars travelling through an intersection.

Run Detection¶

Run the traffic-specific YOLO model on each frame and convert its result to Supervision Detections. The resulting detection stream is the input to the vehicle-tracking stage added next.

import supervision as sv

from ml_pipes.core import Pipeline
from ml_pipes.standard import Select, Store
from ml_pipes.supervision import Detections
from ml_pipes.ultralytics import yolo

pipeline = Pipeline(
    [
        Store("source_frame"),
        yolo.Predict(model=model_path, conf=0.3, iou=0.7),
        Select(0),
        Detections.FromUltralytics(),
    ],
    auto_validate=True,
)

Track Vehicles¶

The traffic model defines bus, car, truck, and van as classes 0 through 3. Filter to those classes before adding ByteTrack. It assigns a persistent ID to each vehicle so subsequent stages can associate its positions and zone visits across frames. Restore the source frame after tracking, then draw a box and persistent ID for every tracked vehicle. This establishes the baseline view before applying zone-based filtering or coloring.

import numpy as np

from ml_pipes.standard import Recall
from ml_pipes.supervision import BoxAnnotator, LabelAnnotator
from ml_pipes.supervision.trackers import ByteTrack


def keep_vehicle_detections(detections: sv.Detections) -> np.ndarray:
    return np.isin(detections.class_id, (0, 1, 2, 3))


pipeline = Pipeline(
    [
        Store("source_frame"),
        yolo.Predict(model=model_path, conf=0.3, iou=0.7),
        Select(0),
        Detections.FromUltralytics(),
        Detections.Filter(keep_vehicle_detections),
        ByteTrack(),
        Recall("source_frame", prepend=True),
        BoxAnnotator(),
        LabelAnnotator(show_tracker_id=True),
    ],
    auto_validate=True,
)

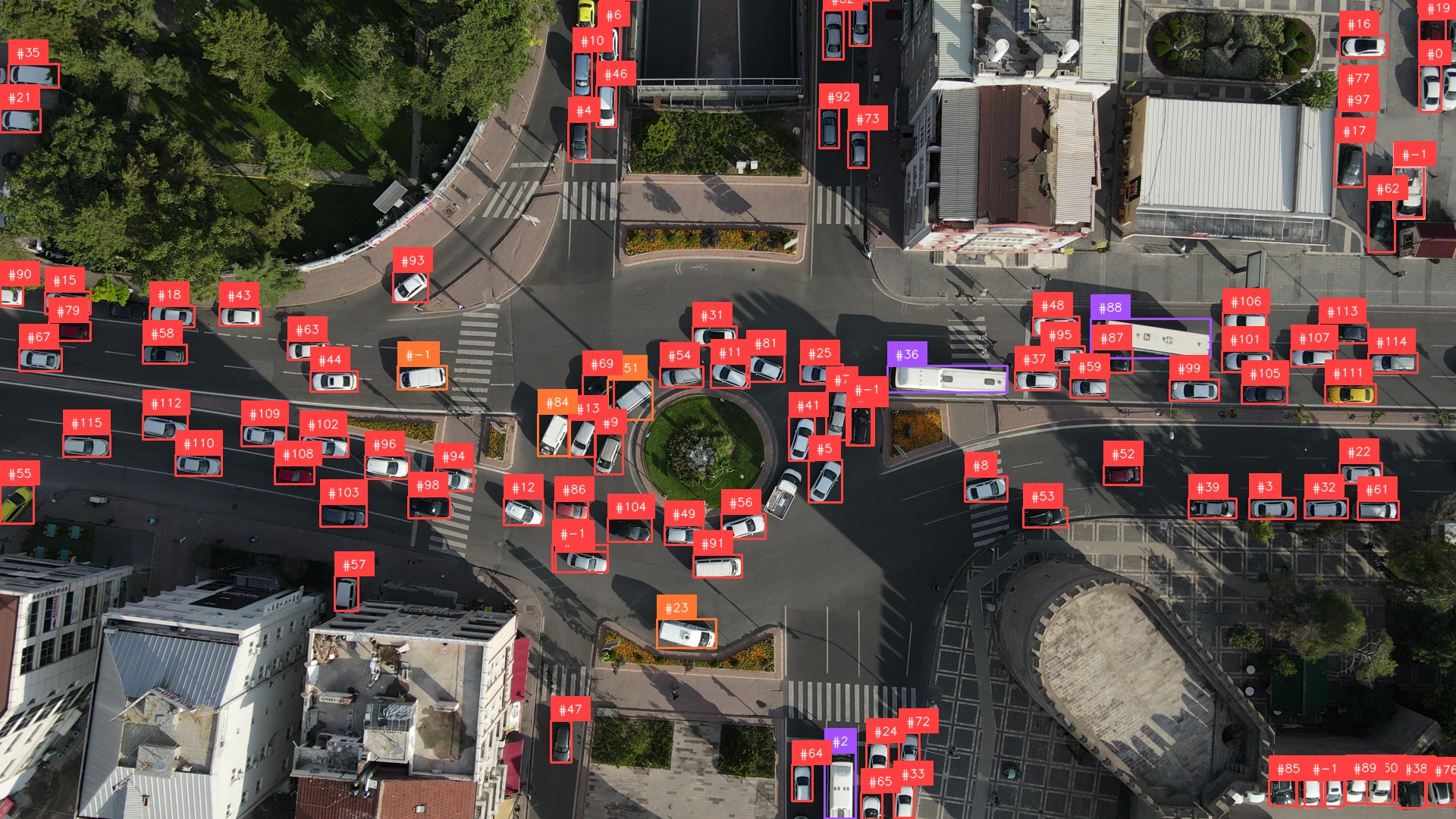

This later frame shows every vehicle that the tracker has associated, whether or not it has reached a configured traffic zone.

All tracked vehicles annotated with persistent IDs

Track Zone Visits¶

Track cars from an entry approach to an exit approach. Define the four entry and four exit polygons, then give their IDs to TrackZoneVisits. It begins a history only when a vehicle enters through a configured entry zone and stops it when the vehicle reaches an exit. This excludes vehicles that were already in the intersection when the video began.

Retain only vehicles with that history, then color their boxes, labels, and traces using the entry zone. Drawing traces last leaves the current vehicle position and its ID clear above the historical path.

from examples.run_traffic_analysis import (
    COLORS,
    ENTRY_ZONE_IDS,
    EXIT_ZONE_IDS,
    TRAFFIC_ZONE_POLYGONS,
    TrackZoneVisits,
    has_zone_visits,
)
from ml_pipes.supervision import Detection, TraceAnnotator


def zone_visit_color_lookup(detection: Detection) -> int:
    """Use the entry zone as the display color."""
    return int(detection.data["zone_visits"][0])

pipeline = Pipeline(
    [
        Store("source_frame"),
        yolo.Predict(model=model_path, conf=0.3, iou=0.7),
        Select(0),
        Detections.FromUltralytics(),
        Detections.Filter(keep_vehicle_detections),
        ByteTrack(),
        TrackZoneVisits(
            TRAFFIC_ZONE_POLYGONS,
            start_zone_ids=ENTRY_ZONE_IDS,
            end_zone_ids=EXIT_ZONE_IDS,
        ),
        Detections.Filter(has_zone_visits),
        Recall("source_frame", prepend=True),
        BoxAnnotator(
            color=COLORS,
            custom_color_lookup=zone_visit_color_lookup,
        ),
        LabelAnnotator(
            show_tracker_id=True,
            color=COLORS,
            custom_color_lookup=zone_visit_color_lookup,
        ),
        TraceAnnotator(
            thickness=2,
            color=COLORS,
            custom_color_lookup=zone_visit_color_lookup,
        ),
    ],
    auto_validate=True,
)

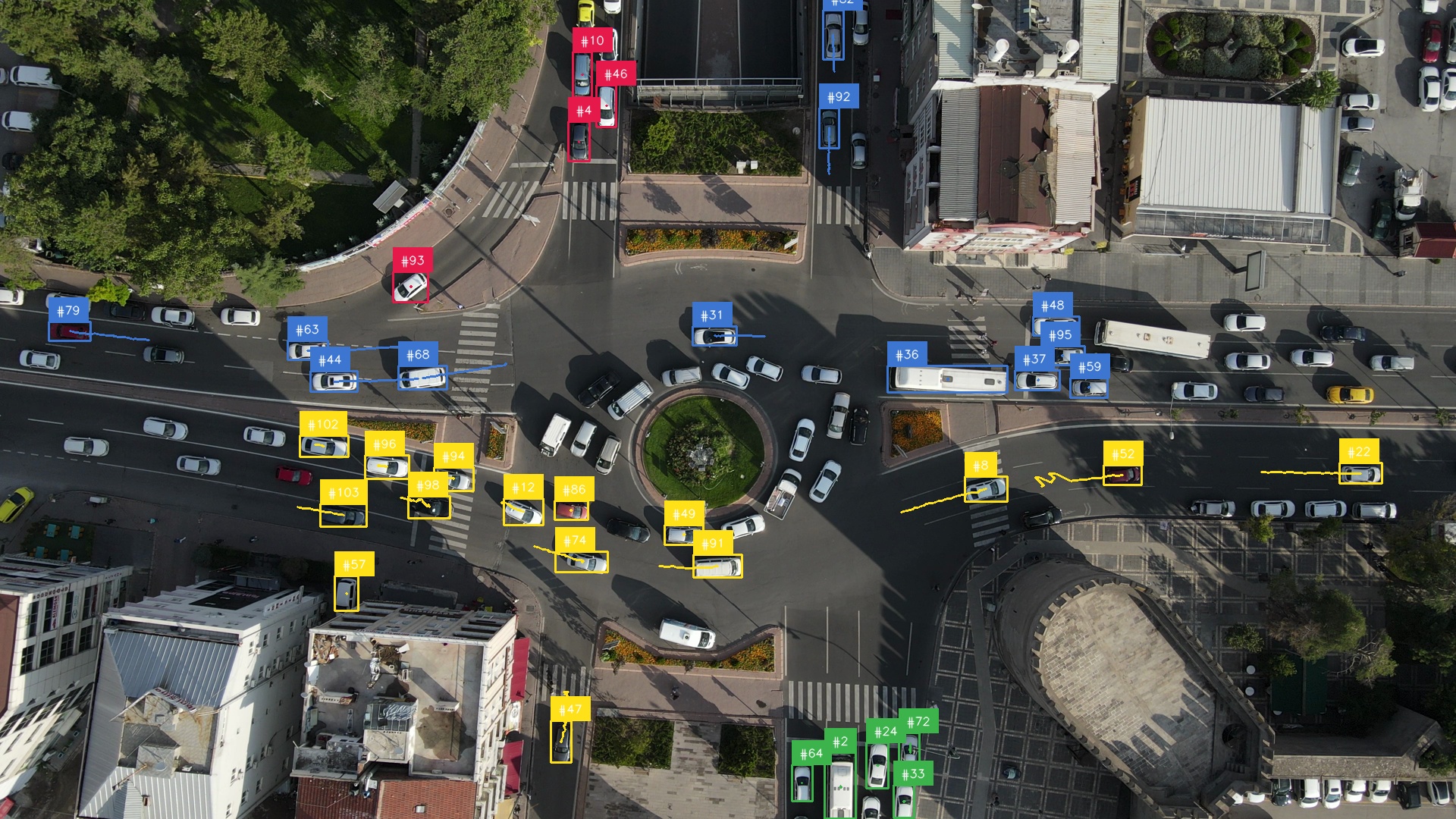

At the same point in the video, vehicles outside the configured entry-to-exit flow are removed. The remaining vehicles are colored by their starting zone, making the visit history visible before aggregate metrics are drawn.

Vehicles with a zone-visit history colored by their first zone

Analyze Zone Transitions¶

ZoneVisitAnalytics consumes the per-vehicle histories before the annotation branch. It publishes an aggregate metrics snapshot for every zone: unique visitors, total visits, unique arrivals and departures, and directed origins and destinations. Store that snapshot while it is paired with detections, then restore it for ZoneTransitionAnnotator after the normal annotation stages.

ZoneTransitionAnnotator draws the zone boundaries and transition totals, and returns the metrics unchanged. The final pipeline value therefore remains available to a later reporting, export, or alerting stage.

from examples.run_traffic_analysis import (
    ZoneTransitionAnnotator,
    ZoneVisitAnalytics,
)
from ml_pipes.standard import Pick
from ml_pipes.supervision import ImageWindow

pipeline = Pipeline(
    [
        Store("source_frame"),
        yolo.Predict(model=model_path, conf=0.3, iou=0.7),
        Select(0),
        Detections.FromUltralytics(),
        Detections.Filter(keep_vehicle_detections),
        ByteTrack(),
        TrackZoneVisits(
            TRAFFIC_ZONE_POLYGONS,
            start_zone_ids=ENTRY_ZONE_IDS,
            end_zone_ids=EXIT_ZONE_IDS,
        ),
        ZoneVisitAnalytics(zone_count=len(TRAFFIC_ZONE_POLYGONS)),
        Store("zone_visit_metrics", source=1),
        Pick(0),
        Detections.Filter(has_zone_visits),
        Recall("source_frame", prepend=True),
        BoxAnnotator(
            color=COLORS,
            custom_color_lookup=zone_visit_color_lookup,
        ),
        LabelAnnotator(
            show_tracker_id=True,
            color=COLORS,
            custom_color_lookup=zone_visit_color_lookup,
        ),
        TraceAnnotator(
            thickness=2,
            color=COLORS,
            custom_color_lookup=zone_visit_color_lookup,
        ),
        Recall("zone_visit_metrics"),
        ZoneTransitionAnnotator(TRAFFIC_ZONE_POLYGONS),
        ImageWindow("Traffic Zone Visit Analytics", at=0),
    ],
    auto_validate=True,
)

This later frame shows the completed intersection analysis: zone boundaries, tracked vehicles, and the transition totals accumulated so far.

Vehicles colored by entry zone, with zone transition totals

Run the Pipeline¶

Use one pipeline instance for the complete video so that its tracker, visit history, and metrics retain their state. ImageWindow displays the live annotated frame. Its side effect does not change the pipeline value, which is the (annotated_frame, visited_detections, metrics_by_zone) tuple. Select the annotated frame at index 0 for process_video.

sv.process_video(
    source_path=source_path,
    target_path="traffic-zone-visits.mp4",
    callback=lambda frame, _: pipeline(frame)[0],
)

The complete runnable version is available at examples/run_traffic_analysis.py.

Pipeline Inspection¶

The first frame has no visit history, so warm the same stateful pipeline to a representative later frame before inspecting it. Pipeline.inspect() records every operator boundary while preserving the output produced by the pipeline.

from ml_pipes.inspection import PipelineInspector

video_info = sv.VideoInfo.from_video_path(source_path)
frames = iter(sv.get_video_frames_generator(source_path))
for _ in range(video_info.total_frames // 2):
    pipeline(next(frames))

representative_frame = next(frames)
inspection = pipeline.inspect(representative_frame)
PipelineInspector().save(inspection, "inspection.html")

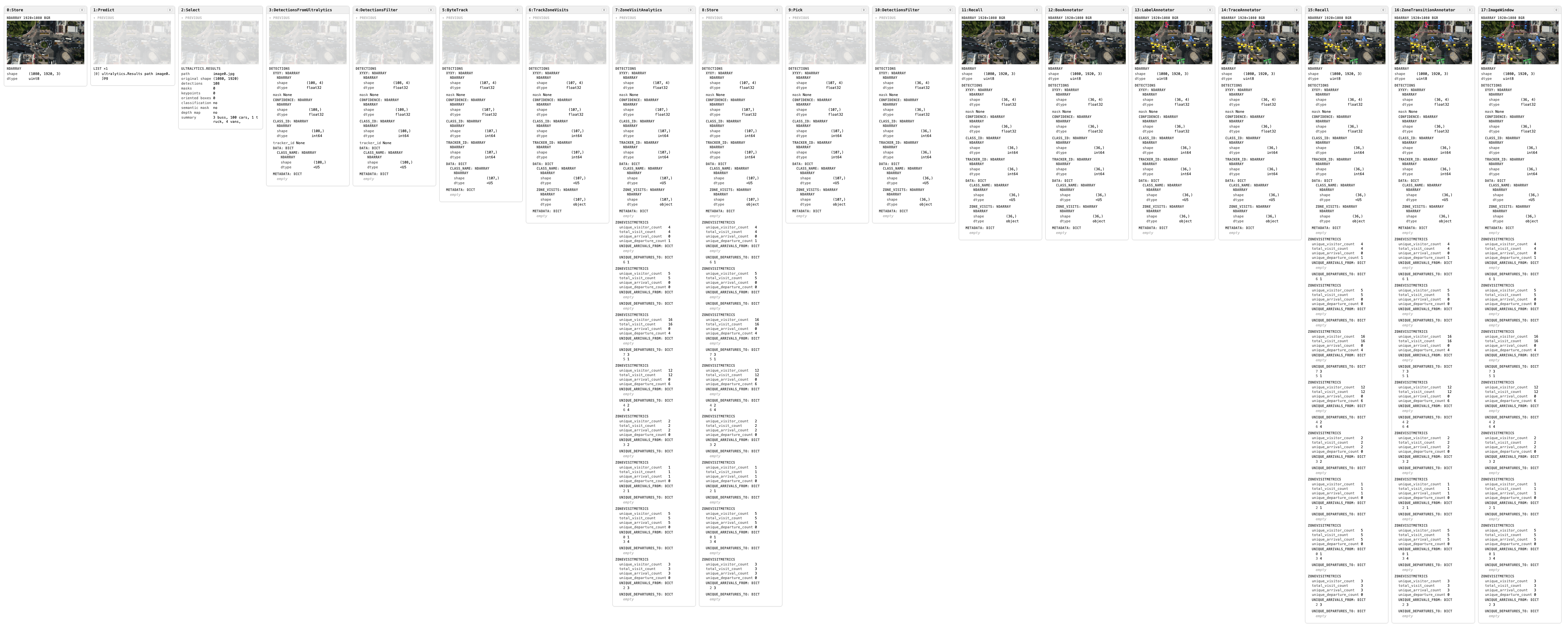

Click the image to open the interactive inspection report.
